Name: Professional manufacture of aluminum windows and doors machines Aluminum Cutting Saw
Brand: China Oil Seal Co.,Ltd
SKU: LJZ4-500X4200
Price: Negotiable USD
Availability: InStock

Home Products Aluminum Cutting Saw Blades

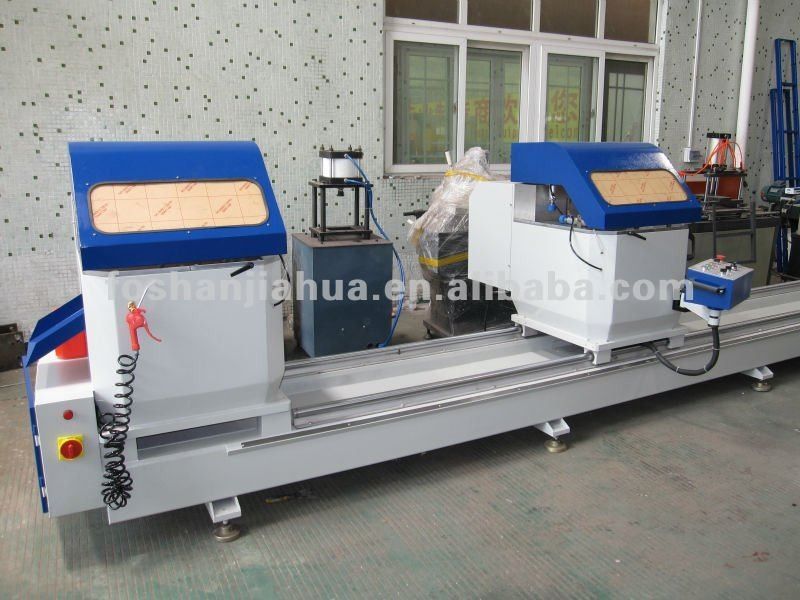

Professional manufacture of aluminum windows and doors machines Aluminum Cutting Saw

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Guangdong Jiahua Machines Corporation
Model Number:	LJZ4-500X4200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Parcel/Parcels
Packaging Details:	woodern packing
Delivery Time:	10 DAYS AFTER RECEIVED THE DEPOSIT
Payment Terms:	T/T
Supply Ability:	60 Parcel/Parcels / Month

Contact Now

Detailed Product Description

Highlight:

Professional manufacture of aluminum windows and doors machines

aluminium saw cutting machines

horizontal and vertical stone cutting machine

The imported digital control system ensures the precise cutting size. The imported ball screw rod drives the machine to move horizontally with precise repeat orientation. You can set a sery of data to realize the continuous cutting according to the preset programme. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 4200mm. The cutting angle is 90, 45 and 22.5 degree. The changeover between the three angles is automatic.

Power Supply	380V 50Hz
Input Power	6.5KW
Working Air Pressure	0.5-0.8MPa
Blade Rotational Speed	3100r/min
Saw Blade Specification	D=500mm,d=30mm
Cutting Length	380-4200mm
Cutting Angles	90, 45, 22.5 (67.5)degree
Outside Dimension	550017001800mm
Weight(about)	1800Kg
