Name: Long Shank TCT Drill Bits SDS Masonry Drills with carbide tips
Brand: China Oil Seal Co.,Ltd
SKU: LCD01024
Price: Negotiable USD
Availability: InStock

Home Products TCT Drill Bits

Long Shank TCT Drill Bits SDS Masonry Drills with carbide tips

Product Details:

Place of Origin:	HANGZHOU CHINA
Brand Name:	TIDEWAY
Certification:	ISO9001, EN847-1 & TUV
Model Number:	LCD01024

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS PER SIZE
Price:	USD35 TO USD75

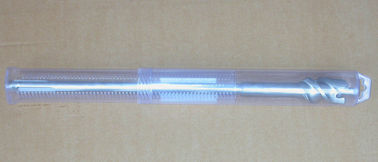

Packaging Details:	Transparent box
Delivery Time:	50 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	500 PCS PER DAY

Contact Now

Detailed Product Description

Highlight:

core drill bit

drill bit set

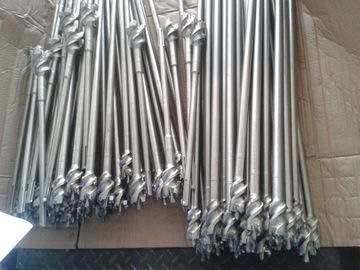

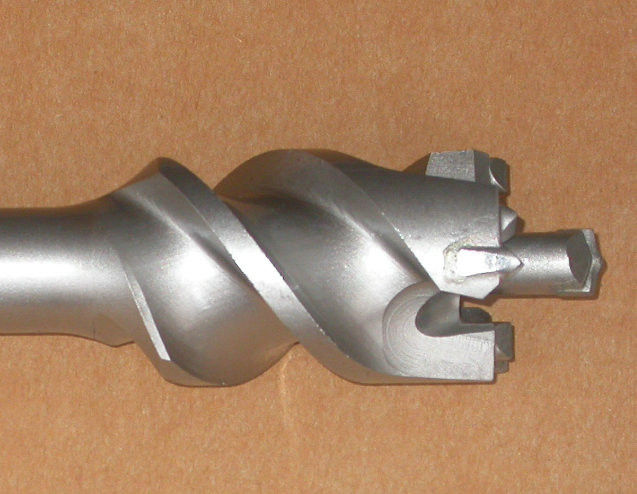

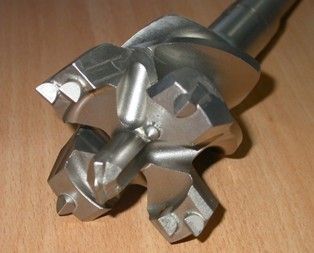

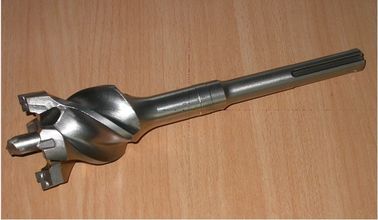

Long Shank TCT Drill Bits SDS Masonry Drills with carbide tips

Quick detail

1:Long shank, the longest is more than 1000mm

2. Tungsten carbide tips hardness HRA89-HRA91.5

3. 45# carbon steel body with heat treatment. Avoid breaking.

4. Brazed high frequency induction brazing makes sure the strength of the teeth to prevent carbide breakage.

5. Special Helical cutting angle . Design for concrete cutting.

6: sand blash processing surface.

Drill bits made of carbon steel and carbide tips. Steel body with heat treatment. to make sure strong enough and no broken. Surface sandblast.

Applications:

Drills make through holes or blind holes or holes on hinges or tanks on point-to point boring machines and line machines. Fro raw and melamine panels, MDF, Multi-layer panels

Mainly the drills are used to make holes on concret floor and wall, other hard surface,and so on.

Specifications:

ITEM NO.	SIZE	MINI QTY
P.O.1	45x800mm 3Flutes	100
P.O.2	45x550mm 3Flutes	100
P.O.3	45x1000mm 3Flutes	100
P.O.4	50x550mm 3Flutes	100
P.O.5	50x1000mm 3Flutes	100
P.O.6	55x550mm 3Flutes	100
P.O.7	55x600mm 3Flutes	100
P.O.8	55x1000mm 3Flutes	100
P.O.9	60x550mm 4Flutes	100
P.O.10	60x600mm 4Flutes	100
P.O.11	60x1000mm 4Flutes	100
P.O.12	65x550mm 4Flutes	100
P.O.13	65x600mm 4Flutes	100
P.O.14	65x1000mm 4Flutes	100
P.O.15	68x310mm 4Flutes	100
P.O.16	68x550mm 4Flutes	100
P.O.17	68x1000mm 4Flutes	100
P.O.18	72x310mm 4Flutes	100
P.O.19	72x1000mm 4Flutes	100
